New modern equipments used by Deformable Media Engineering Research Group are:



SEM Microscope - Tescan VEGA II - XMU

Main characteristics:

-          Maximum resolution: 3,5 nm;

-          Voltage: 30keV;

-          Magnification: 1.000.000 x;

-          Detectors: SE and BSE;

-          Working environments: high and low vacuum;

-          Working samples: 7;

-          Stage: Full automatic;





Tensile-compression testing module Gatan MICROTEST-2000 (mounted inside SEM)

Main characteristics:

-          Maximum resolution: 0,1 N;

-          Maximum force: 2000 N;

-          Performed tests: tensile; compression; cyclic tests;

-          Testing speed: 0,03 – 4,0 mm/min;

-          Maximum sample extension: 10 mm.



Microhardness tester - Willson-Volpert 401MVA

Main characteristics:

-          Applied forces: 10 g – 1000 g;

-          Dwell time: 5 s – 60 s;

-          Stage control: 0,01 mm;

-          Objectives: 10x; 40x;

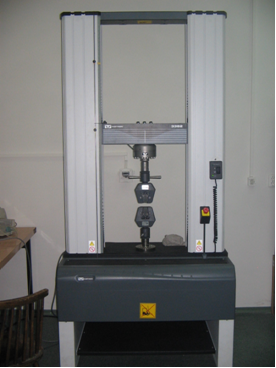

Universal mechanical testing machine - INSTRON 3382

Main characteristics:

-          Maximum resolution: 0,1 N;

-          Maximum testing force: 100 kN;

-          Testing speed: 1 – 100 mm/min

-          Maximum no. of extensometers: 3;

-          Performed tests: tensile / compression / bending / etc.

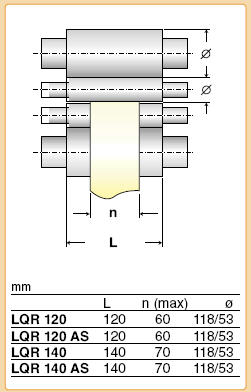

Four cylinders rolling-mills Mario di Maio LQR 120 AS

Main characteristics:

-          Cylinders diameter: 118 mm / 53 mm;

-          Cylinders length: 120 mm;

-          Maximum cylinders gap: 14 mm;

-          Milling speed: 0 - 6,3 m/min;

-          Maximum milling force: 17 tf;





Melting furnace - GERO LHTG 100x200

Main characteristics:

-          Maximum working temperature: 3000 °C;

-          Heating/cooling speed: variable from min. 1 °C/min;

-          No. of heating/cooling steps per cycle: 99;

-          Control: full programmable;

-          Working athmospere: high vacuum and argon;

-          Maximum inner dimensions: Ø100 x 200 mm;

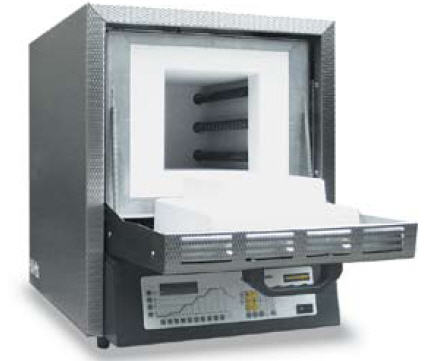

Heating / Heat treatment oven -  NABERTHERM HTC 08/16

Main characteristics:

-          Maximum working temperature: 1600 °C;

-          Heating/cooling speed: variable from min. 1 °C/min;

-          Maximum inner dimensions: 170 x 290 x 170 mm;

Our Research Group is using, also, other equiments:

- Laboratory rolling-mills for plate and round products;

- Heating / Heat treatment ovens;

- Drawing bench for wires and round products;

- Drop weight tester;

- Rockwell and Vickers hardness testers;

- Torsion testers;

- Tensile testers for wires;

- Charpy hammers;
- etc.

Our Research Group is planning to complete our equipments infrastructure with other new and modern equipments:

- Metallographic samples preparation line (Cutting /  Mounting / Grinding / Polishing machines);

- Mechanical samples preparation line (Cutting / Drawing / Grinding / machines);

- Cleaning samples line (cleaning baths; ultrasonic baths; etc);
